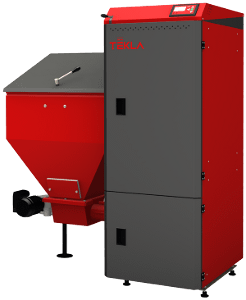

Cast iron pellet boilers DRACO TYTAN

Cast iron pellet boilers DRACO TYTAN is stipulated for heating with solid fuel as in automatic mode, so traditional mode. The constructive solutions applied in the manufacturing of the boilers DRACO TYTAN, provide for a high safety of boiler operations, convenient exploitation and comfort owing to the operation in the automatic mode, as well as universality of fuel choice. The construction of the boiler allows to heat with pellets and coal fraction up to 25 mm in the automatic mode, in the traditional mode with coal and wood. The upper combustion chamber (the traditional mode) is provided for the heating with solid fuel in emergency situations, it is not stipulated for exploitation throughout the entire heating season. The boiler is equipped with a modern, very simple in application regulator providing for over 30 functions, including the automatic regulation of modes depending on weather conditions, as well as it is possible to install a room thermostat. If it is necessary, it is possible to equip the boilers with a rotating burner. The cast iron boilers DRACO TYTAN are characterized by ecological and high efficiency combustion of fuel, achieving even 82,5%. With a wide range of boiler capacities it is possible to heat a detached house, as well as a block of flats, recreation premises, shops, etc.



Automatic mode:


Traditional mode:






Advantages of the boilers:

  • Capacities of the boilers - 20 / 25 / 32 kW
  • Automatic feeding of fuel
  • Possibility to heat with wood or coal in the traditional mode in emergencies (ran out of pellets)
  • 5-year warranty for the boiler heat exchanger
  • High efficiency: up to 82,5%
  • Safety sensors
  • Modern control panel with the functions – the control of servomotor to the four-way valve
  • Ability to program an automatic operation of the boiler for 7 days
  • Simple and fast maintenance
  • Low level of harmful emission in the burning process
  • Automatic igniter, the increased volume of hopper, rotating burner: supplementary equipment, when ordering the boiler
