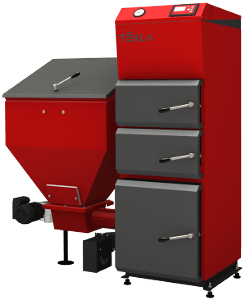

Pellet heating boilers DRACO DUO VERSA

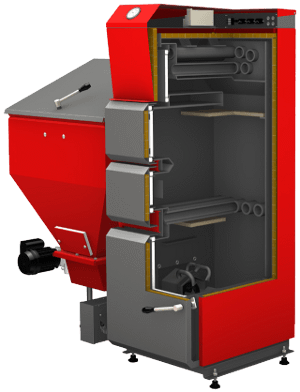

Pellet heating boilers DRACO DUO VERSA is stipulated for heating with solid fuel as in automatic mode, so traditional mode. The constructive solutions applied in the manufacturing of the boilers DRACO DUO VERSA, provide for a high safety of boiler operations, convenient exploitation and comfort owing to the operation in the automatic mode, as well as universality of fuel choice. The construction of the boiler allows to heat with pellets and coal fraction up to 25 mm in the automatic mode, in the traditional mode with coal and wood. The upper combustion chamber (the traditional mode) is provided for the heating with solid fuel in emergency situations, it is not stipulated for exploitation throughout the entire heating season. The heat exchanger of the boiler is manufactured of 8 mm thick certified boiler steel. The pellet boiler is equipped with a modern, very simple in application regulator providing for over 30 functions, including the automatic regulation of modes depending on weather conditions, as well as it is possible to install a room thermostat. The pellet heating boilers DRACO DUO VERSA are characterized by ecological and high efficiency combustion of fuel, achieving even 90%. With a wide range of boiler capacities it is possible to heat a detached house, as well as a block of flats, recreation premises, shops, etc.





Automatic mode:








Traditional mode:











Advantages of the boilers:

  • Capacities of the boilers - 20 / 30 kW
  • Automatic feeding of fuel
  • Possibility to heat with wood or coal in the traditional mode in emergencies (ran out of pellets)
  • Heat exchanger is made of 3 – 8 mm thick boiler steel
  • 5-year warranty for the boiler heat exchanger
  • High efficiency: up to 90%
  • Safety sensors
  • Temperature regulation by a servomotor and a four-way valve
  • Possibility to connect a room thermostat through wires or in a remote system
  • Simple and fast maintenance
  • Low level of harmful emission in the burning process, in compliance with the European standards
  • The increased volume of hopper: supplementary equipment, when ordering the boiler
